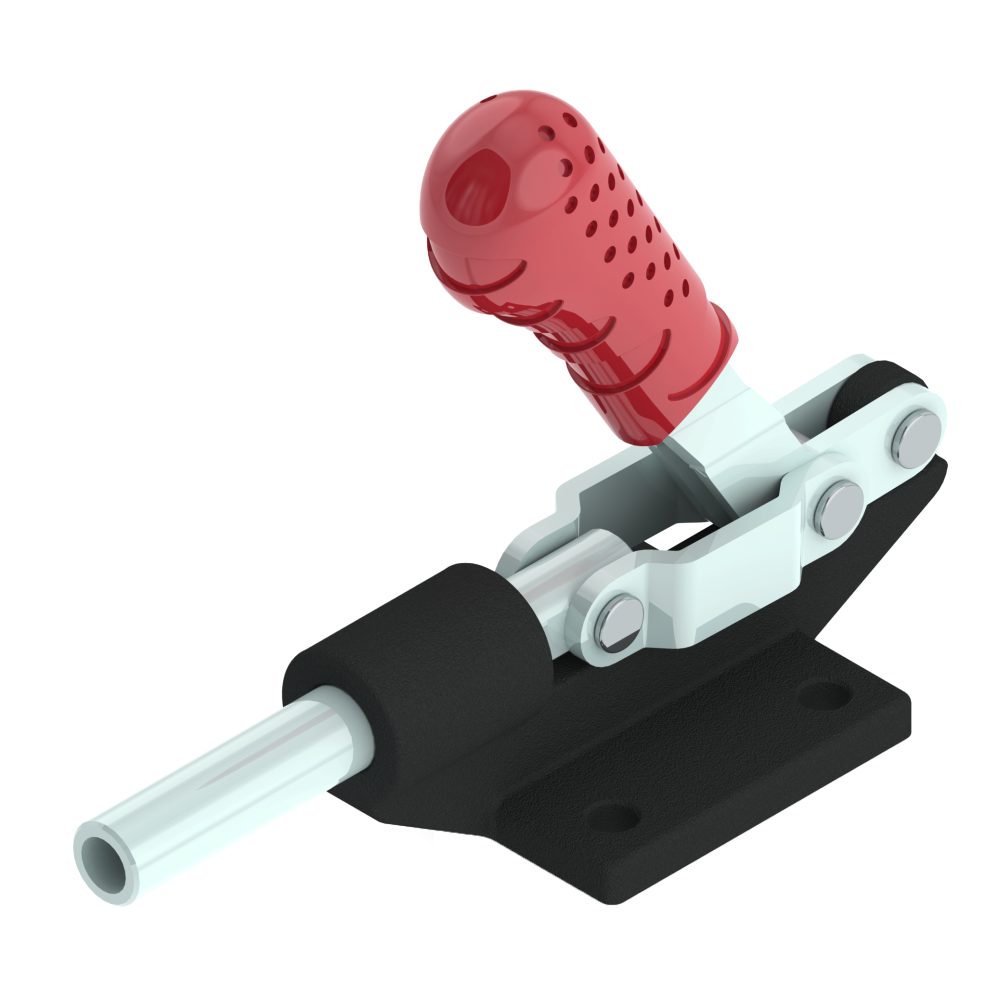

HTC-2530-PS

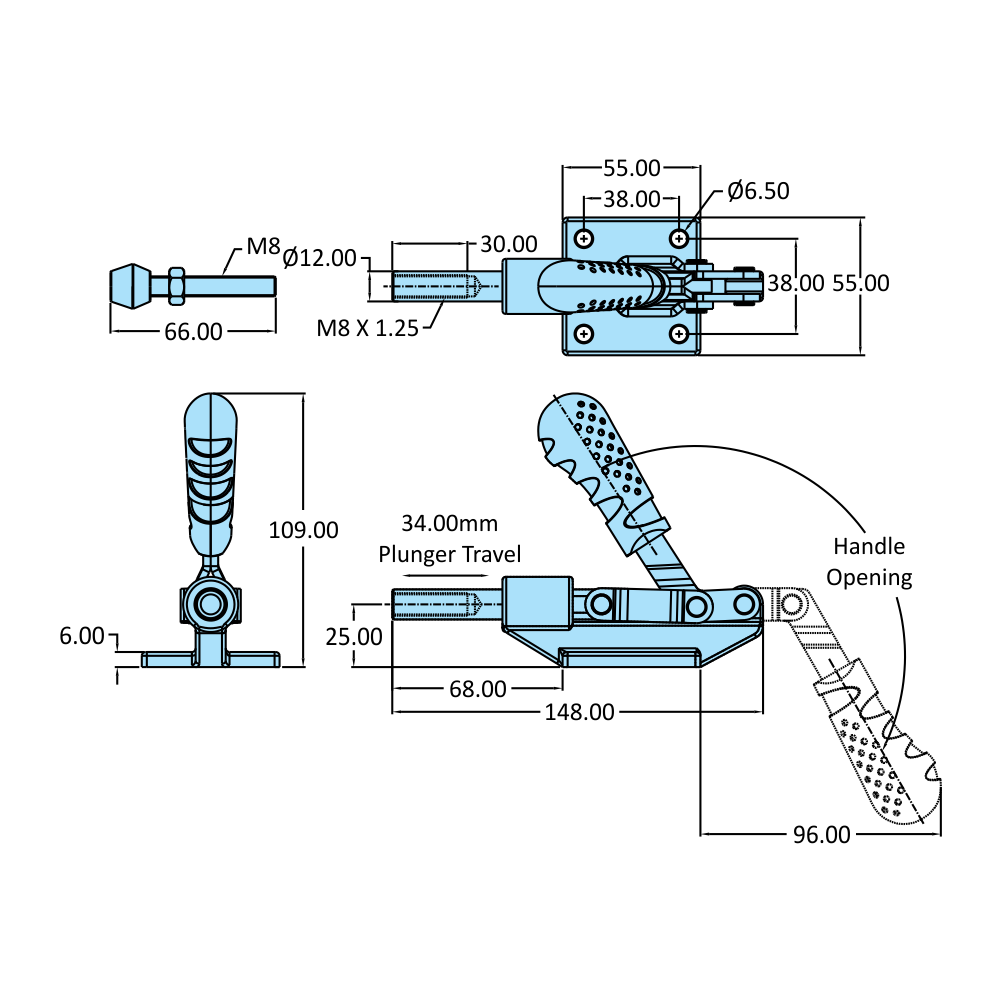

Specifications
- Model No: HTC-2530-PS
- Type: HTC-Series Medium/Heavy Duty-Package Size, Flanged Base
- Base Type: Flanged Base
- Material: Steel
- Finish: Zinc Plated/Black Powder Coated
- Plunger Travel: 34.00 mm
- Handle Opening: 183°
- Supplied With: RT-865-1N
- Holding Capacity X1: 2.90 kN
- Length: 148.00 mm
- Width: 55.00 mm
- Height: 109.00 mm
- Weight: 0.510 Kgs
Description
Welding Fixtures, Assembly Fixtures, Checking Fixtures, Wood-Working, Closures, Food Processing, Pharmaceutical Machines, PCB Assembly, Locating Applications
